Network

List of vnets (latest version see Unifi console):

Name	VLAN ID	Router	Subnet
Default	1	prd-unifi-1	192.168.1.0/24
Management	2	prd-unifi-1	192.168.2.0/24
Clients	3	prd-unifi-1	192.168.3.0/24
Server	4	prd-unifi-1	192.168.4.0/24
IoT	5	prd-unifi-1	192.168.5.0/24
Guests	6	prd-unifi-1	192.168.6.0/24
Volt - Development	7	prd-unifi-1	192.168.7.0/24
Var - Testing	8	prd-unifi-1	192.168.8.0/24
Watt - Production	9	prd-unifi-1	192.168.9.0/24

Tasks:

Define Networks
- OK Ranges definieren
- OK Verteilen, was wohin kommt
- OK VLAN IDs statisch besser als dynamisch
- OK DNS definieren (fix vs. dynamisch)
Gateway Settings
- Auto Update
- Block outgoing DNS
- Plugins wie OPNSense CrowdSec

::: mermaid graph LR A[Internet] -->|ISP Connection| ND1[Gateway
gw-jj-nar-prd-opr-1]

subgraph "On-Prem Hub (VLAN ID 1)"
    ND1 -->|VPN Tunnel to Azure| C[VPN Gateway]
    ND1 --> D[Firewall & Security Policies]
    ND2[Switch<br>sw-jj-nar-prd-opr-1]
    ND3[Access Point<br>ap-jj-nar-prd-opr-0]
    ND4[Access Point<br>ap-jj-nar-prd-opr-1]
    ND5[Access Point<br>ap-jj-nar-prd-opr-2]
    ND6[Access Point<br>ap-jj-nar-prd-opr-3]
end

subgraph "On-Premises Spoke Networks"
    D --> V2[Management VLAN ID 2]
    V2 --> V201[Supermicro]
    V2 --> V202[prd-proxmox-1]
    V2 --> V203[prd-proxmox-2]
    D --> V3[Clients VLAN 3]
    V3 --> V301[Mobiles]
    V3 --> V302[Laptops]
    V3 --> V303[Apple TV]
    V3 --> V304[HomePods]
    D --> V4[Servers VLAN 4]
    V4 --> V401[Legacy unneeded in future<br>will be in VLAN 7/8/9]
    D --> V5[IoT VLAN 5 - Isolated 🔒]
    V5 --> V501[Home infrastructure]
    V5 --> V502[Loxone]
    V5 --> V503[Home Assistant]
    D --> V6[Guests VLAN 6]
    V6 --> V601[Friends visting]
    D --> V10[Guests VLAN 10]
    V10 --> V1001[Customers of rented<br>out flat]

end

subgraph "On-Premises Workload Spoke Networks"
    D --> O[*.volt.* VLAN ID 7]
    D --> P[*.war.* VLAN 8]
    D --> Q[*.watt.* VLAN 9]
end

C -->|VPN Tunnel| J[Azure VPN Gateway]

subgraph "Azure Hub"
    J --> K[Azure Firewall]
end

subgraph "Azure Workload Spoke Networks"
    K --> L[Spoke 1: *.volt.*]
    K --> M[Spoke 2: *.var.*]
    K --> N[Spoke 3: *.watt.*]
end

:::

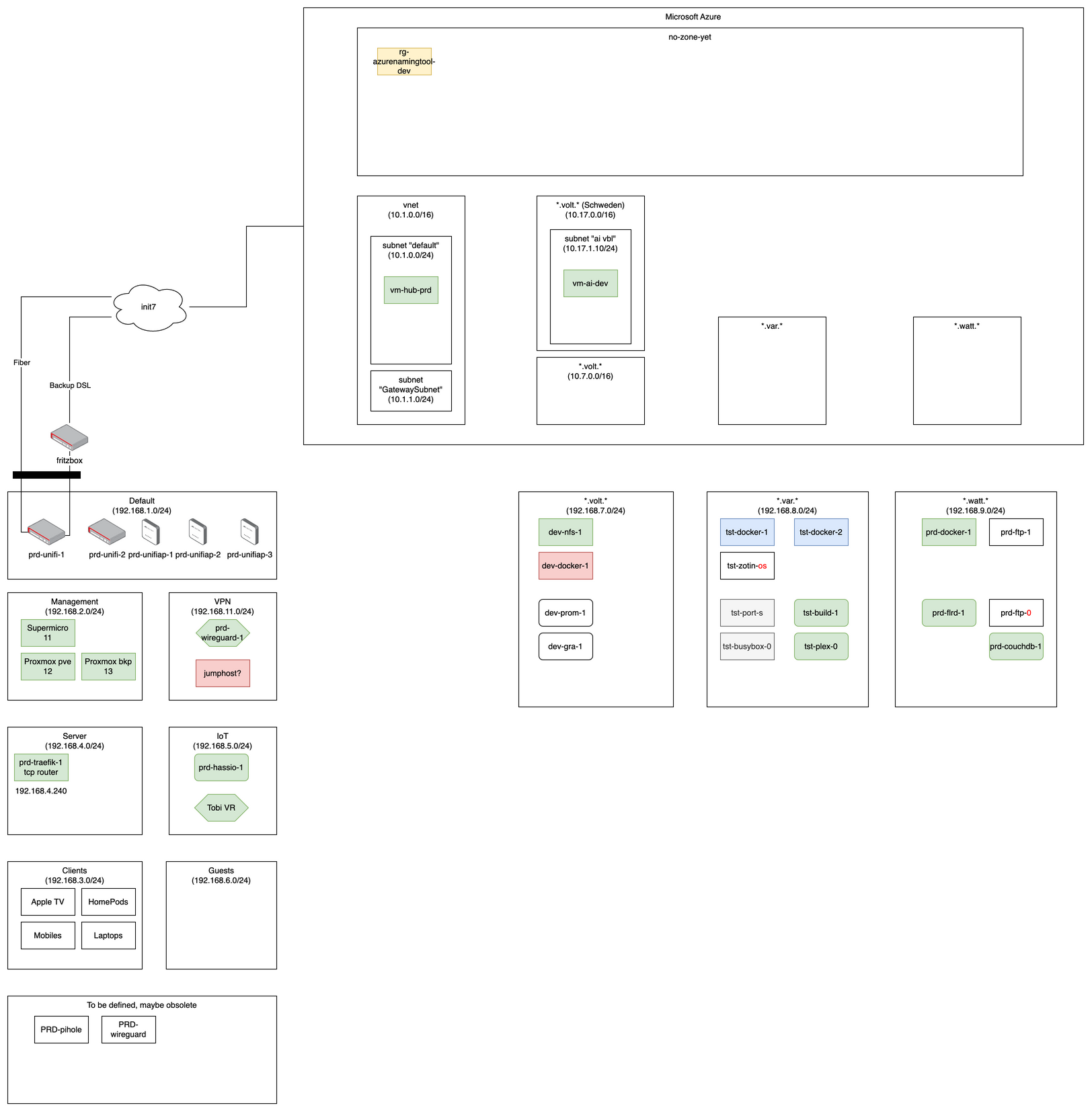

Legacy diagram for reference:
